1400 Deg. C Industrial Heat Treatment Furnace for Metal Tempering and Annealing
|Voltage||AC 380V 3 Phase, 50/60 Hz|
|Heating Element||Sic Rod|
|Transport Package||in Plywood Case|
Product DescriptionProduct Overview
STD 1200 series industrial furnace features high quality spiral wire coils embedded in Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Laboratory furnaces are ideal for heat treating, reacting studies, sintering processes, and ceramic firing.
Our laboratory furnaces feature temperatures up to 1800 degrees Celsius and capacities up to 64 liters. Important specifications to consider when searching for a laboratory furnace include the process temperature, control requirements, dimensions of sample and inner dimensions of chamber or tube, and pressure range.
Furnace operation is controlled by Shimaden (Japan) 32-segment digital controller with temperature accuracy of +/- 1 C degree. Proper temperature control is vital to the success of your project as well. Temperatures that are too high or too low will cause problems with the process and could cost your company a significant amount of money.
1. Front loading, auto lifting door.
2. Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
3. Built-in ammeter and voltmeter for easy monitoring and troubleshooting.
4. Built-in computer interface.
5. Long life type N thermocouple.
6. CE certified
|Chamber Size mm(W*D*H)||150x150x150||200x300x120||250x300x250||400x400x400|
|Usage||The product is suitable for elemental analysis, measurement and small and midium sized steel hardening, annealing, tempering, heat treatment and heating in laboratory, industrial and mining enterprises, scientific research units,can also be used for sintering of metal, stone, ceramic, dissolution analysis of high-temperature heating.|
The furnace is made of carbon steel with powder coating on surface, integrate furnace body and heating system and controller system in one
|Max. temperature||1200°C (2192°F)|
|Continuous Working temperature||1100°C (2012°F)|
|Heating Rate||5~20ºC/min for longer life using of furnace|
|Heating Element||Top brand iron-aluminum alloy resistance coil wire (HRE) wear on ceramic tubes distributes in three sides of the wall|

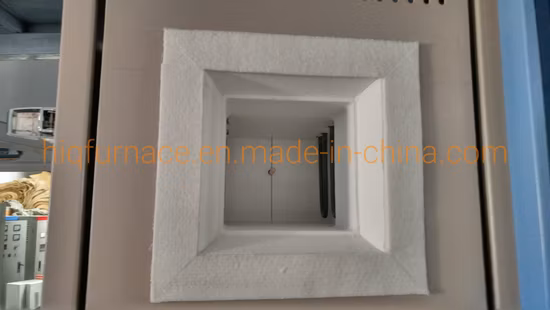

|Chamber material||High quality alumina refractory bricks|
Temp. Range: (0 to 1260) °C [32 to 2300] °F
|Temperature Controller||1. Shimaden SRS13A(Japan) with 4 programs and 32 segments|
2.Simultaneous LED display of actual temperature VS set point
3.PID automatic control and auto-tune function
4.+/- 1 ºC temperature accuracy
Control system integrated in furnace base, defined application within the constraints of the operating instructions
|Electronic component||SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc.|
|Furnace Shell||1. High quality cold-rolled steel sheets CNC processing|
2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc.
3. Energy efficient insulation keeps exterior safe to touch
|Safety Precautions||1. Overheating & Broken thermocouple protection|
2. Leakage circuit breaker
3. Automatic power off when furnace door opens (optional function)
4. Over-temperature protection and alarm allow for operation without attendant(s)
5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature
One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products respectively
